Retained Technologies

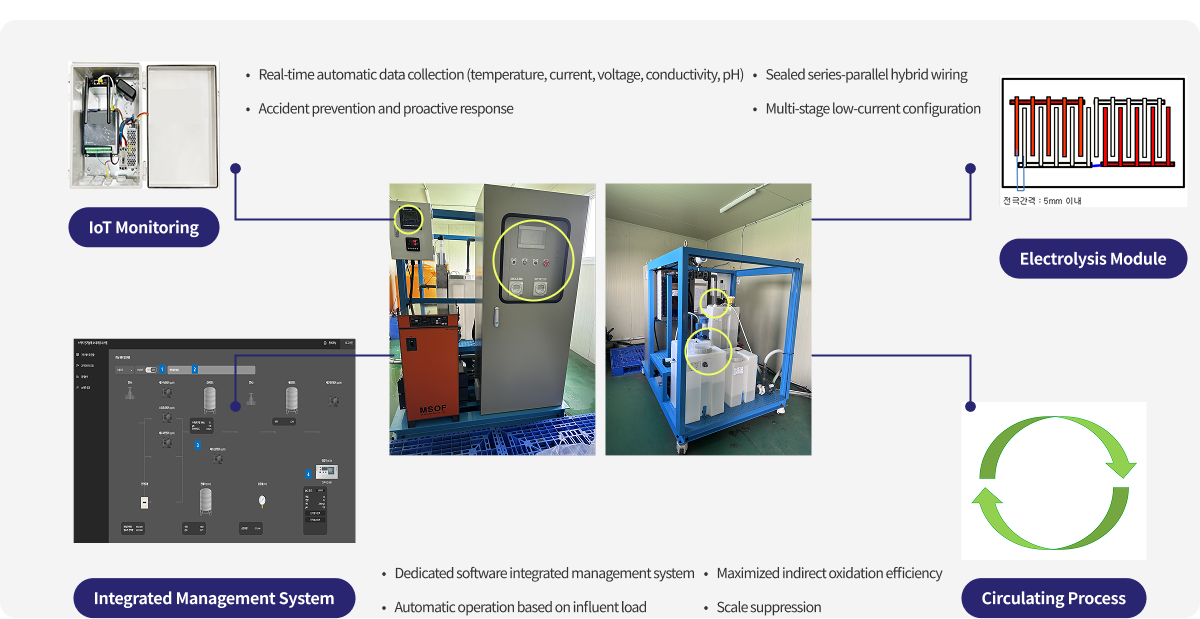

KEC (Kumkang Electro Chemical) SYSTEM
-
01
Compact modular design saves installation space
-
02
Modular circulating process scalable according to treatment capacity
-
03
Single-process removal of high-concentration nitrogen and refractory organic pollutants
-
04
IoT-based smart technology with simple, convenient, and efficient operation
-
05
Flexible response and energy savings through differentiated applied current based on influent load
Application Targets
-
01
High-concentration ammonia
wastewater in semiconductor/
display industries -
02
High-concentration nitrate
wastewater from plating/
surface treatment -
03
Refractory organic pollutants
in food waste effluent -
04
High-concentration TOC in
plastics manufacturing
wastewater
Target: High-Concentration Ammonia Nitrogen
| Influent NH3-N (mg/L) |
Effluent NH3-N (mg/L) |
NH3-N Removal Rate (mg/L/min) |
Removal Efficiency (%) |
|---|---|---|---|
| 2000 | 250 | 70 | 87.5 |
Target: High-Concentration Nitrate Nitrogen
| Influent NO3-N (mg/L) |
Effluent NO3-N (mg/L) |
NO3-N Removal Rate (mg/L/min) |
Removal Efficiency (%) |
|---|---|---|---|
| 500 | 30 | 15.7 | 94 |
Target: High-Concentration TOC
| Influent TOC (mg/L) |
Effluent TOC (mg/L) |
TOC Removal Rate (mg/L/min) |
Removal Efficiency (%) |
|---|---|---|---|
| 3000 | 280 | 22.7 | 91 |
